Online UPS (1/1) Products
1 phase input / 1 phase output • 1 – 40 kVA • Double conversion technology
Operating with Online UPS (Double Conversion) technology, these products convert mains power first to DC and then back to AC, providing 100% isolation of your load from all mains issues. They deliver uninterrupted protection with zero transfer time. The products listed below are in 1 phase input – 1 phase output configuration.

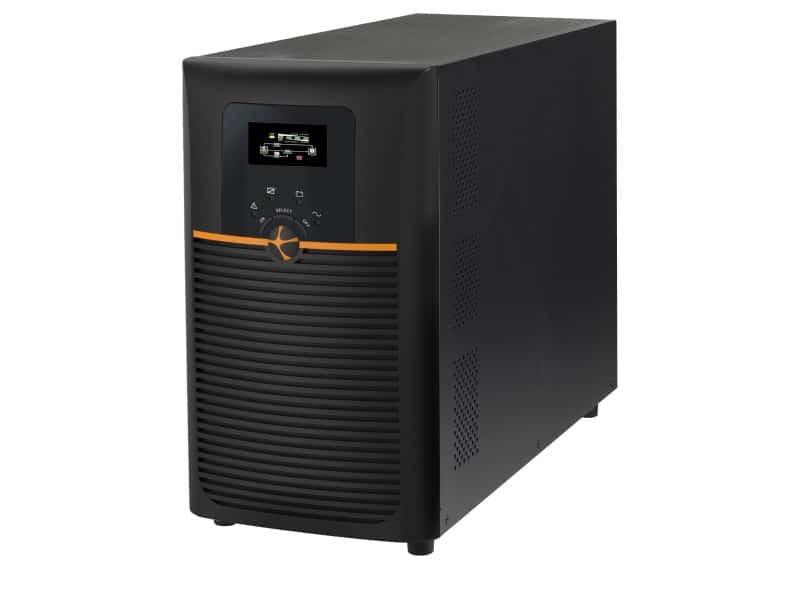

Newtech Pro III One LCD
1-3 kVA online UPS. LCD display, true sine wave output, compact tower design. Automatic voltage regulation with AVR.
Newtech Pro III One LED
1-3 kVA online UPS. LED indicator, true sine wave output, economical model. Basic protection and regulation features.
Newtech Pro II LCD
1-3 kVA online UPS. LCD display, advanced communication features, USB/RS232 ports for computer connectivity.

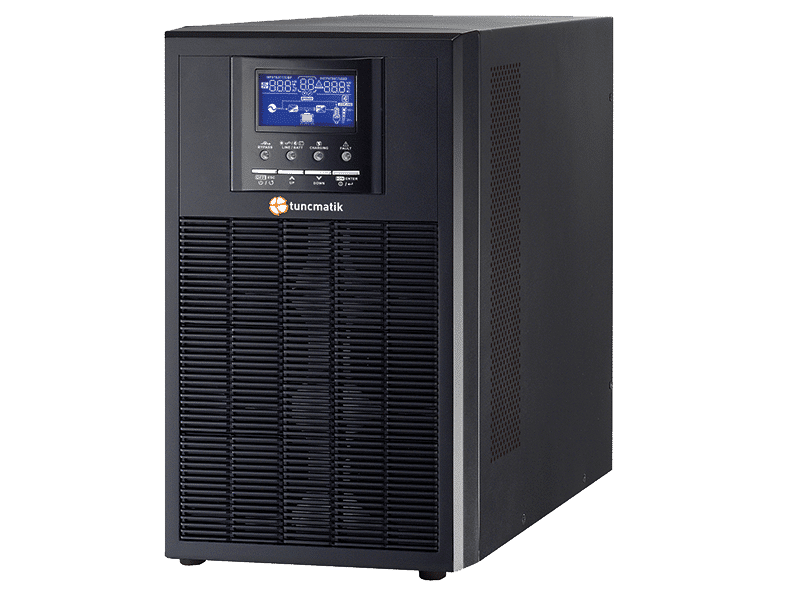

Newtech Pro II LED
1-3 kVA online UPS. LED indicator, economical model. Ideal for small office and home use with basic online protection features.
Newtech Pro 123
1-3 kVA online UPS. Compact design, high-performance battery charging, wide input voltage range.

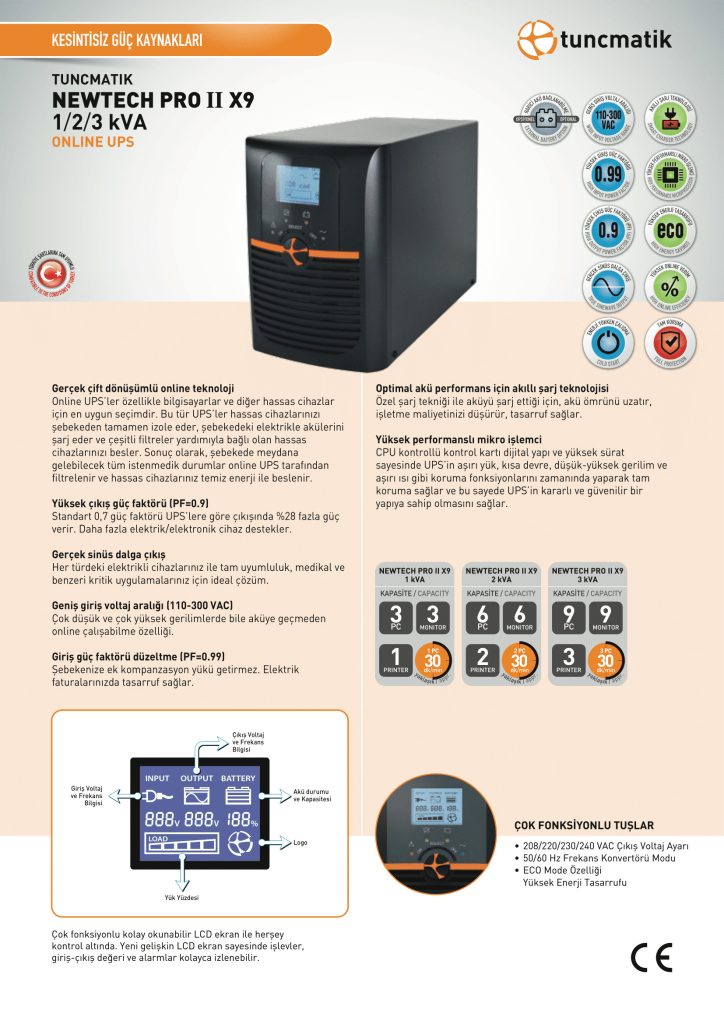

Newtech Pro II X9
1-3 kVA online UPS. Advanced DSP-controlled, high efficiency, large LCD display, ECO mode support.
PowerUP One
6-10 kVA online UPS. High power density, 3U rack/tower convertible design, parallel capability.
Newtech Plus 31
10-20 kVA online UPS. 3 phase input / 1 phase output, high efficiency, parallel operation support, large LCD panel.
Newtech Pro X9 DSP
10-30 kVA online UPS. Advanced DSP-based control, high efficiency (95%+), parallel operation and SNMP management.

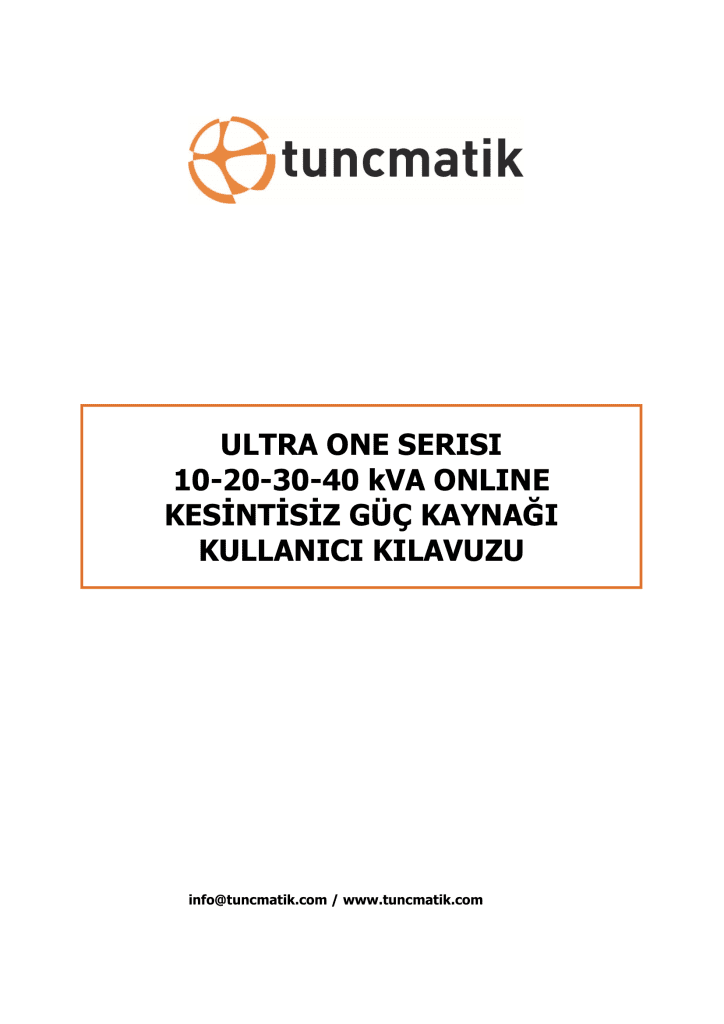

Ultra One
10-40 kVA online UPS. Industrial grade, modular battery support, large LCD panel, SNMP remote management.
Technical Specifications
| Feature | Newtech Series (1-3 kVA) | PowerUP / Plus Series (6-20 kVA) | Ultra One Series (10-40 kVA) |
|---|---|---|---|
| Technology | Online / Double Conversion | Online / Double Conversion | Online / Double Conversion |
| Input / Output | 1/1 Phase | 1/1 or 3/1 Phase | 1/1 Phase |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Efficiency | > 90% | > 93% | > 95% |
| Connectivity | USB / RS232 | USB / RS232 / SNMP | USB / RS232 / SNMP |
| Parallel Operation | - | Optional | Yes |
Product Documents
Browse the catalogs below for detailed technical information about our products.
